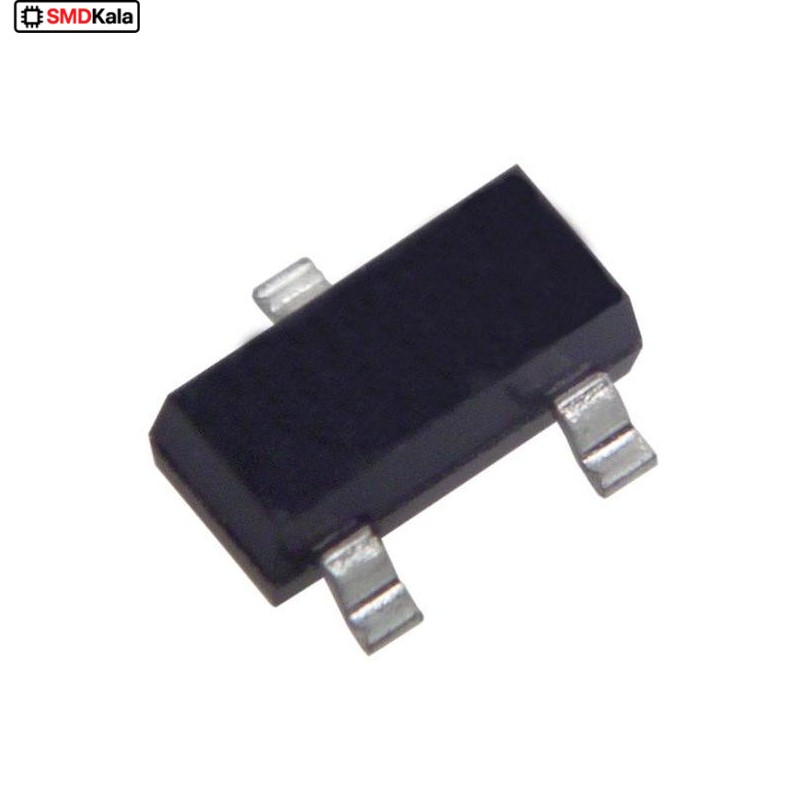

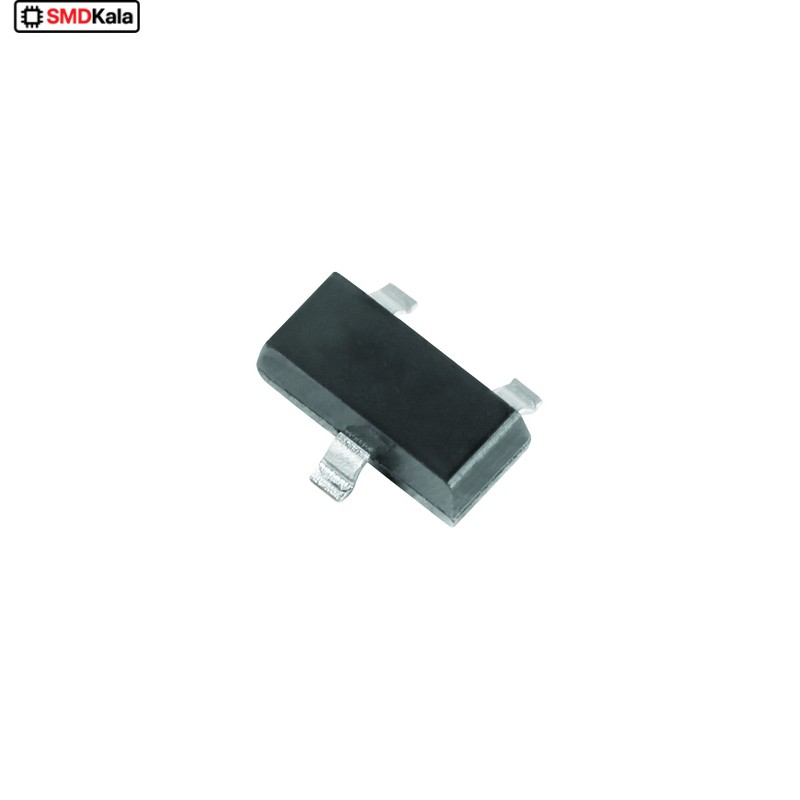

دیود شاتکی BAT54C

Product Category: Schottky Diodes & Rectifiers RoHS: RoHS Compliant Details Product: Schottky Diodes Mounting Style: SMD/SMT Package / Case: SOT-23 If - Forward Current: 0.2 A Vrrm - Repetitive Reverse Voltage: 30 V Vf - Forward Voltage: 0.8 V at 0.1 A Ifsm - Forward Surge Current: 0.6 A Configuration: Dual Common Cathode Technology: Si Ir - Reverse Current: 2 uA at 25 V Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Series: BAT54C Packaging: Reel Height: 0.93 mm Length: 2.92 mm Operating Temperature Range: - 55 C to + 150 C Factory Pack Quantity: 3000 Termination Style: SMD/SMT trr - Reverse Recovery time: 5 ns Type: Schottky Diode Width: 1.3 mm Part # Aliases: BAT54C_NL
