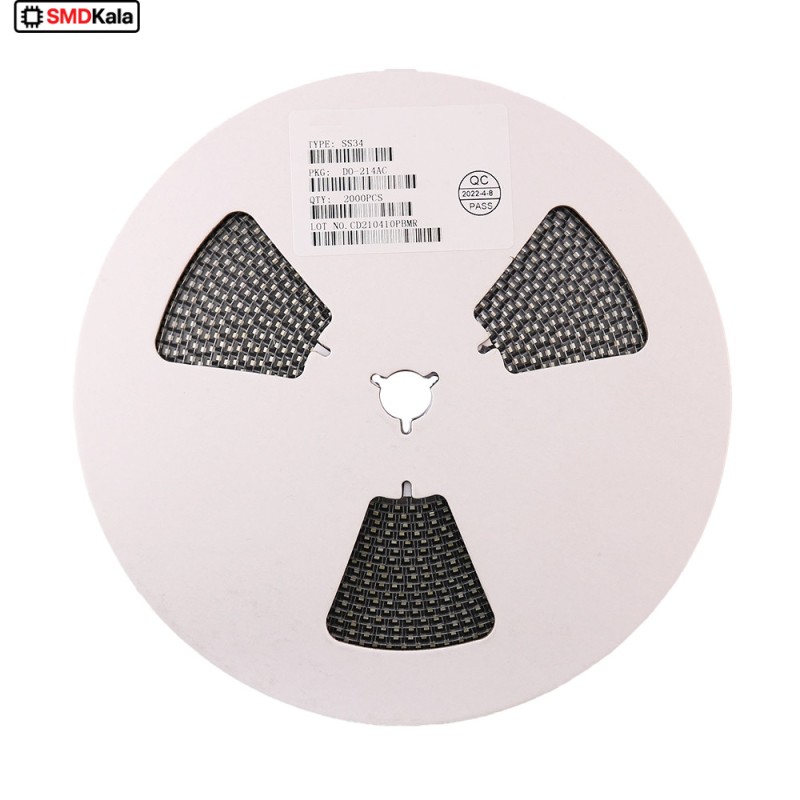

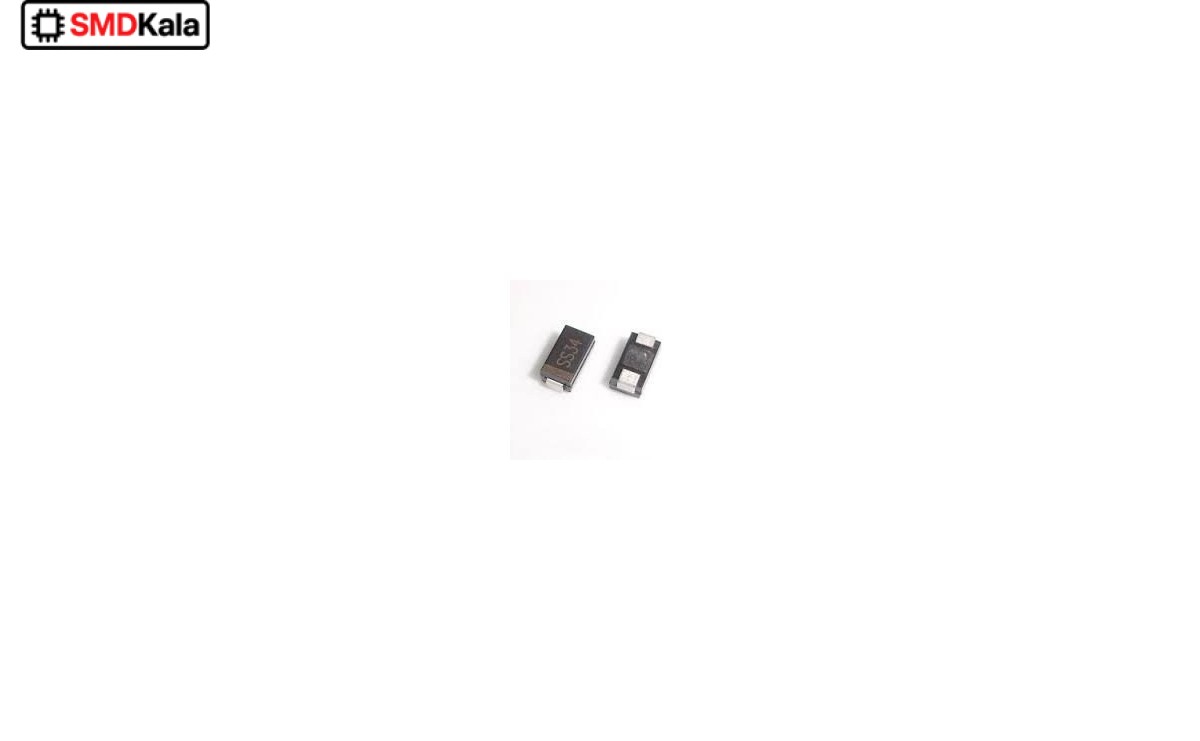

دیود شاتکی SS34 5822 SMD پکیج SMA رول - بسته 2000 تایی

Product Category: Schottky Diodes & Rectifie RoHS: RoHS Compliant Details Product: Schottky Rectifiers Mounting Style: SMD/SMT Package / Case: (TE85R) SMA (DO-214AC) If - Forward Current: 3 A Vrrm - Repetitive Reverse Voltage: 40 V Vf - Forward Voltage: 0.5 V Ifsm - Forward Surge Current: 100 A Configuration: Single Technology: Si Ir - Reverse Current: 500 uA Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Series: SS34 Packaging: Reel Height: 2.45 mm (Max) Length: 7.15 mm (Max) Operating Temperature Range: - 55 C to + 150 C Type: Schottky Diode Width: 6.25 mm (Max) Part # Aliases: SS34_NL Datasheet SM5822 SMA DO-214AC (SMAJ)
