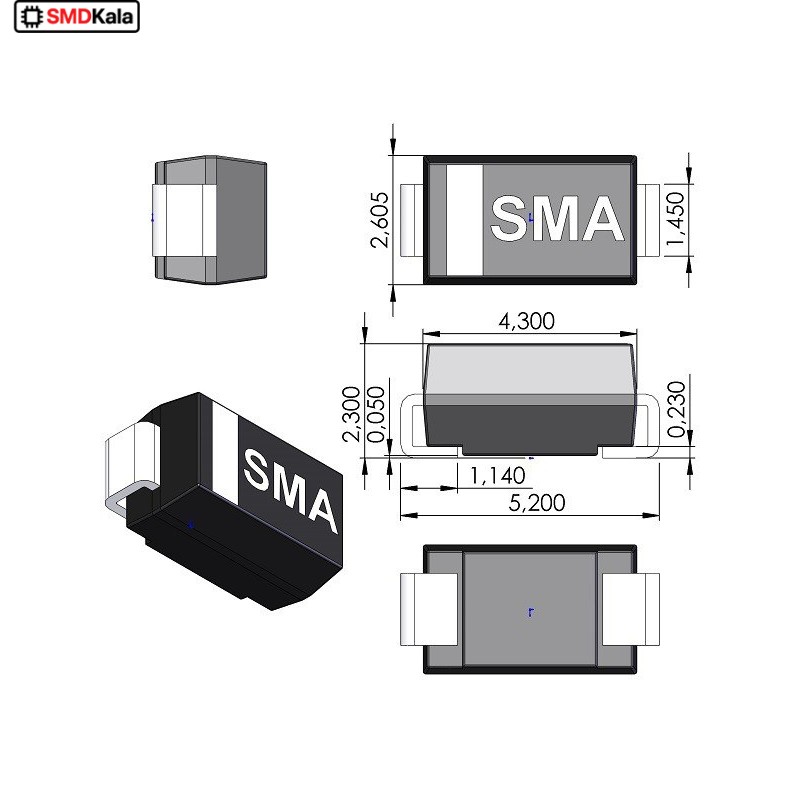

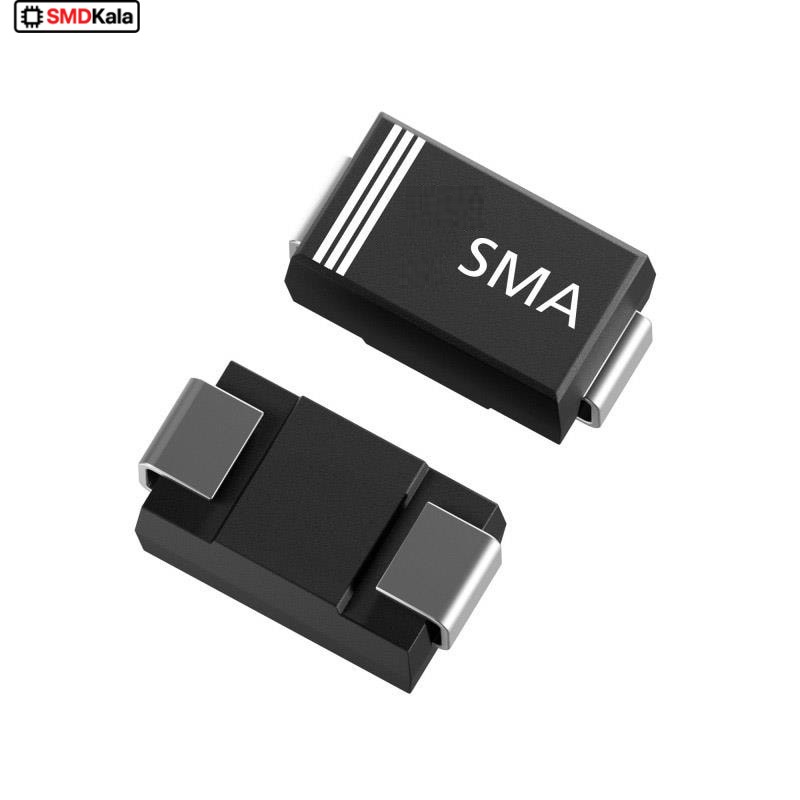

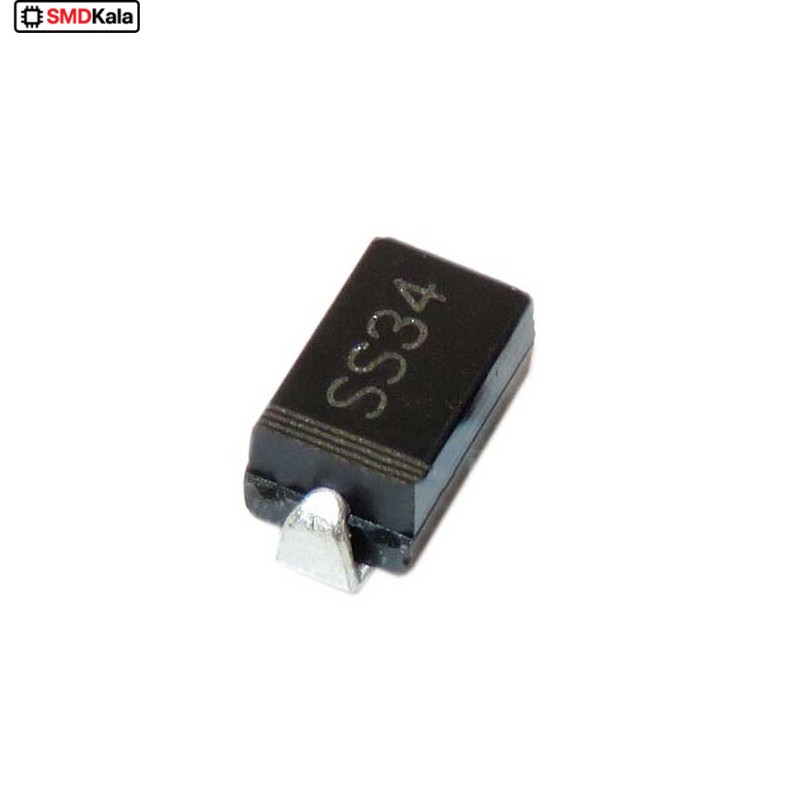

دیود شاتکی 3A-40V مدل SS34 پکیج SMA

Specification SM5822 SMA (TE85R) DO-214AC (SMA) Product Category: Schottky Diodes & Rectifiers Product: Schottky Rectifiers Mounting Style: SMD/SMT Package / Case: SMA (DO-214AC) If - Forward Current:3 A Vrrm - Repetitive Reverse Voltage:40 V Vf - Forward Voltage:0.5 V Ifsm - Forward Surge Current:100 A Configuration: Single Technology: Si Ir - Reverse Current:500 uA Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 150 C Series:SS34 Type:Schottky Diode
