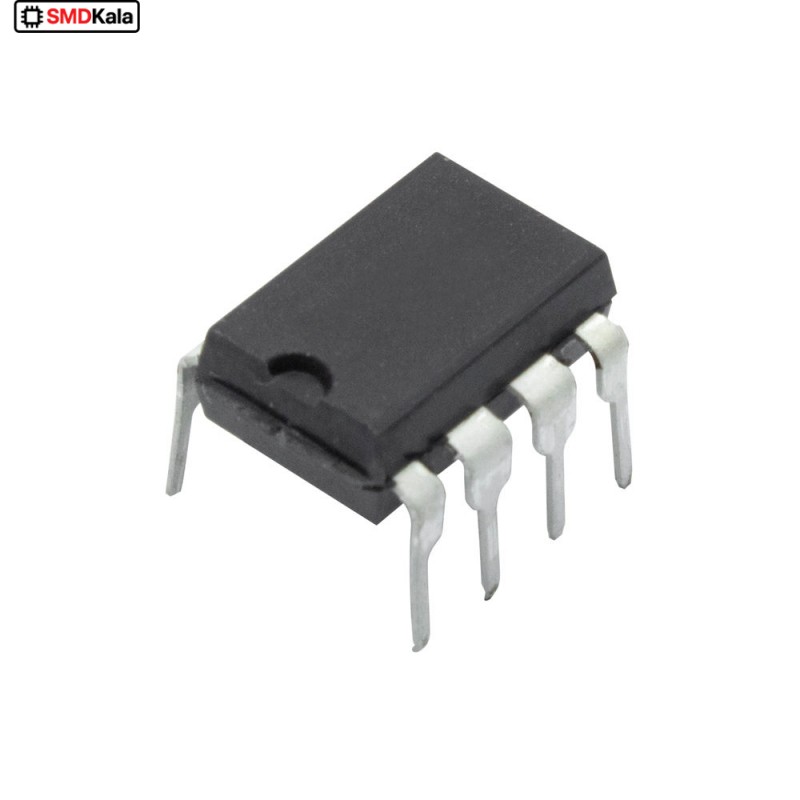

تراشه حافظه AT24C08 پکیج DIP

آی سی حافظه EEPROM پارت نامبر AT24C08 پکیج DIP Specification Product Category: EEPROM Mounting Style: SMD/SMT Memory Size: 8 kbit Organization: 1 k x 8 Interface Type: Serial, 2-Wire, I2C Access Time: 4500 ns Data Retention: 100 Year Maximum Clock Frequency: 100 kHz Supply Current - Max: 3 mA Supply Voltage - Min: 2.7 V Supply Voltage - Max: 5.5 V Minimum Operating Temperature: 0 C Maximum Operating Temperature: + 70 C Height: 1.48 mm (Max) Length: 4.98 mm (Max) Width: 3.99 mm (Max) Brand: Microchip Technology / Atmel Operating Supply Current: 3 mA Operating Supply Voltage: 3.3 V, 5 V
