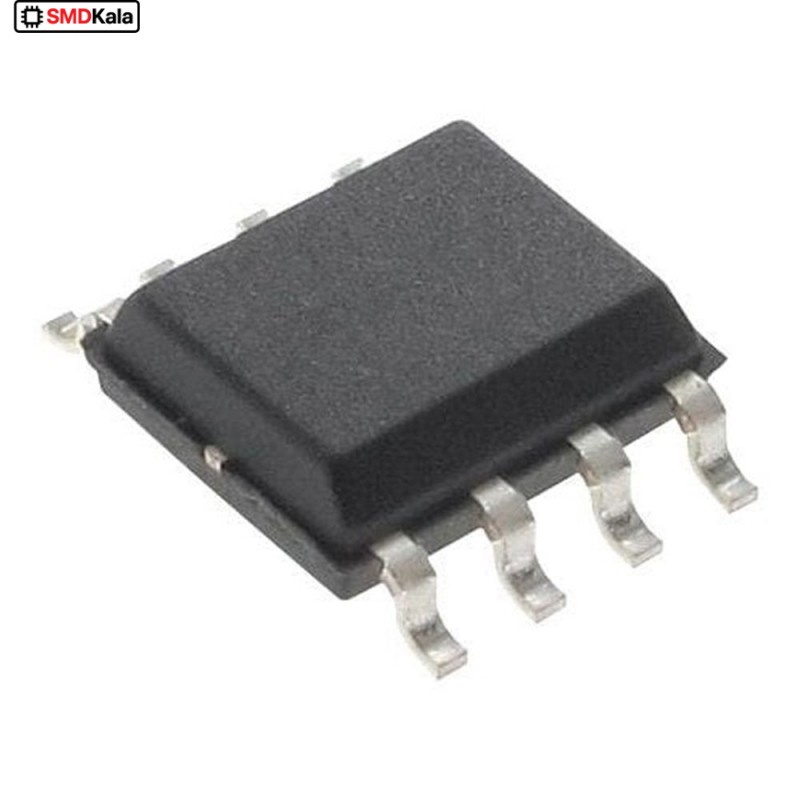

تراشه حافظه AT24C02 پکیج SO-8

تراشه حافظه EEPROM پارت نامبر AT24C02-AT24C02BN پکیج SMD SO-8 Specification Manufacturer: Microchip Product Category: EEPROM RoHS: N Mounting Style: Through Hole Interface Type: 2-Wire, I2C Memory Size: 2 kbit Organization: 256 x 8 Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V Minimum Operating Temperature: 0 C Maximum Operating Temperature: + 70 C Maximum Clock Frequency: 400 kHz Access Time: 900 ns Data Retention: 100 Year Supply Current - Max: 3 mA Active Read Current - Max: 3 mA Brand: Microchip Technology Height: 3.3 mm Length: 9.27 mm Operating Supply Current: 3 mA Operating Supply Voltage: 1.8 V, 5.5 V Product Type: EEPROM Subcategory: Memory & Data Storage Width: 6.35 mm Unit Weight: 0.032805 oz
