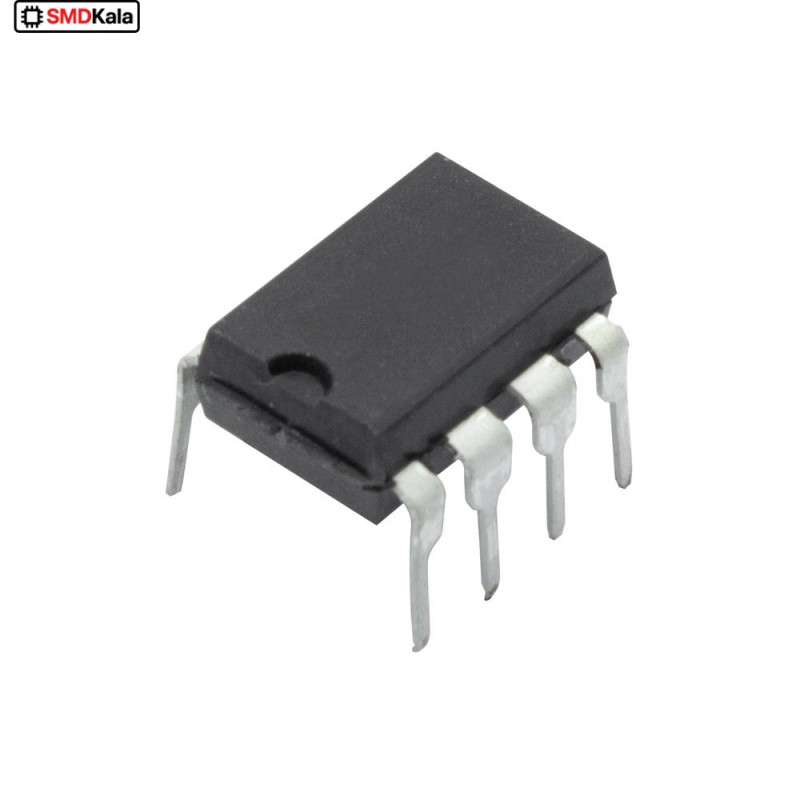

تراشه حافظه AT24C64 پکیج DIP

آی سی حافظه EEPROM پارت نامبر AT24C64 پکیج DIP Specification Product Category: EEPROM Mounting Style: SMD/SMT Package / Case: SOIC-8 Memory Size: 64 kbit Interface Type: Serial, 2-Wire, I2C Organization: 8 k x 8 Data Retention: 100 Year Maximum Clock Frequency: 0.4 MHz Supply Current - Max: 2 mA Operating Supply Voltage: 2.5 V, 3.3 V, 5 V Maximum Operating Temperature: + 85 C Series: CAT24C64 Packaging: Reel Access Time: 900 ns Height: 1.5 mm (Max) Length: 5 mm (Max) Minimum Operating Temperature: - 40 C Operating Supply Current: 2 mA Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.8 V Width: 4 mm (Max)
