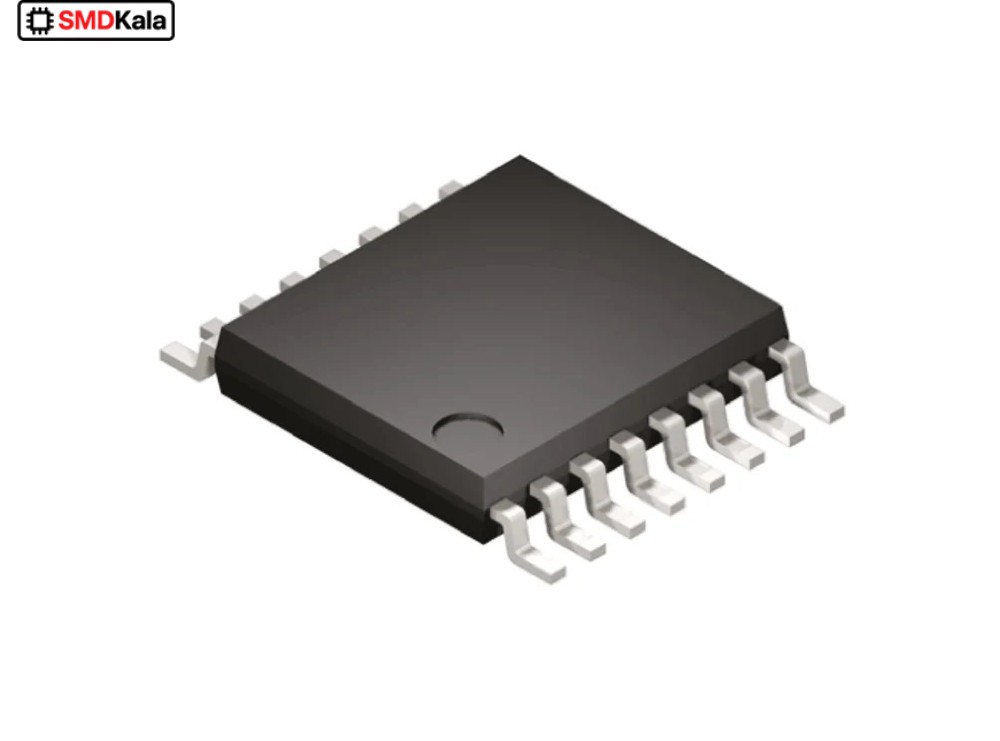

تراشه مبدل آنالوگ به دیجیتال ADS1230 پکیج TSSOP-16

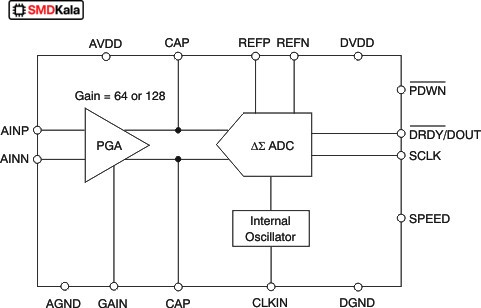

آی سی مبدل آنالوگ به دیجیتال دقیق 20 بیتی ADS1230 پکیج TSSOP-16 Introduction The ADS1230 is a precision 20-bit analog-to-digital converter (ADC). With an onboard low-noise programmable gain amplifier (PGA), onboard oscillator, and precision 20-bit delta-sigma ADC, the ADS1230 provides a complete front-end solution for bridge sensor applications including weigh scales, strain gauges, and pressure sensors. The low-noise PGA has a gain of 64 or 128, supporting a full-scale differential input of ±39mV or ±19.5mV, respectively. The delta-sigma ADC has 20-bit effective resolution and is comprised of a 3rd-order modulator and 4th-order digital filter. Two data rates are supported: 10SPS (with both 50Hz and 60Hz rejection) and 80SPS. The ADS1230 can be clocked by the internal oscillator or an external clock source. Offset calibration is performed on-demand, and the ADS1230 can be put in a low-power standby mode or shut off completely in power-down mode. All of the features of the ADS1230 are controlled by dedicated pins; there are no digital registers to program. Data are output over an easily-isolated serial interface that connects directly to the MSP430 and other microcontrollers. The ADS1230 is available in a TSSOP-16 package and is specified from -40°C to +85°C. Specification Resolution (Bits): 20 Number of input channels: 1 Sample rate (Max) (kSPS): 0.08 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-Ended Multi-channel configuration: — Reference mode: Ext Input range (Max): 0.039(V) Input range (Min): 0(V) Features: 50/60 Hz Rejection, Oscillator, PGA Operating temperature range: -40(C) to 85(C) Power consumption (Typ): 2.9(mW) Analog voltage AVDD (Min): 2.7(V) Analog voltage AVDD (Max): 5.3(V) Digital supply (Min): 2.7(V) Digital supply (Max): 5.3(V) Applications Weigh Scales Strain Gauges Pressure Sensors Industrial Process Control
