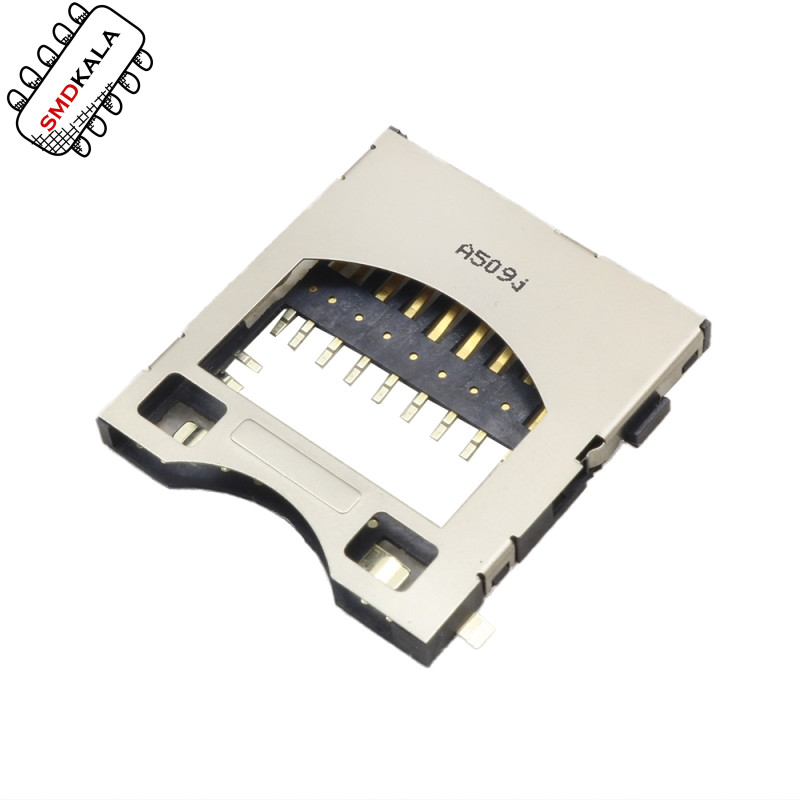

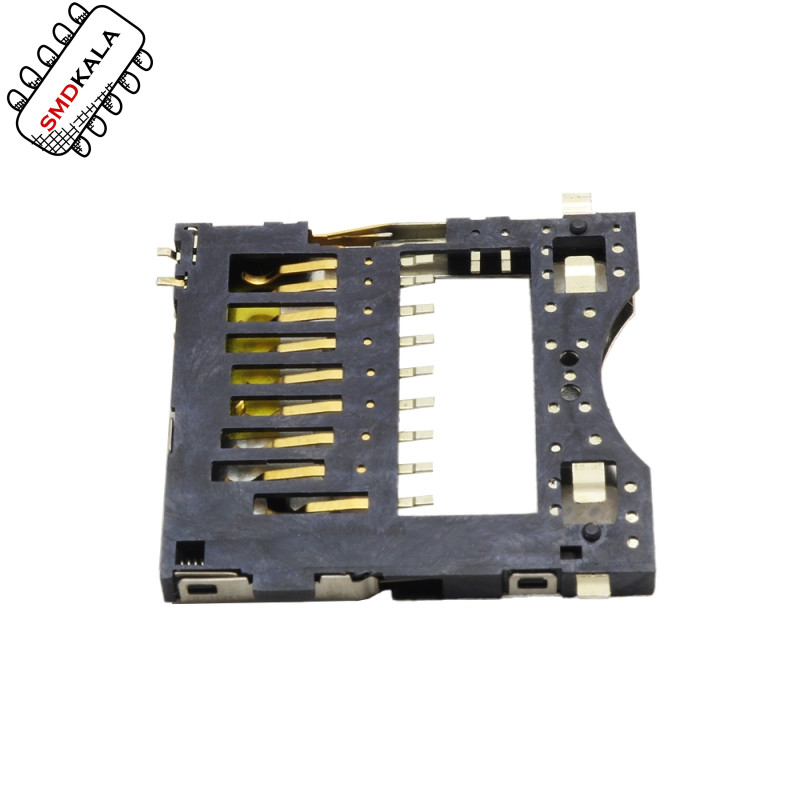

سوکت کارت حافظه SD جک دار 9 پین

سوکت مموری کارت SD جک دار 9 پین

Security Digital Card Connector
WK Series
Right Angle, SMT
Push Push Type
With Detect Switches
9 Pos.

SPECIFICATIONS

Mechanical
Card Insertion Force: 1.5Kg (3.31Lb) max.
Durability: 10000 Cycles

Electrical
Operating Voltage: 3.3V
Operating Current: 100mA
Contact Current Carrying Capacity : 500mA max.
Contact Resistance: 30mW max. initial
Dielectric Withstanding Voltage: 500Vrms AC min.
Insulation Resistance: 1000MW max. initial

Physical
Housing: Thermoplastic, UL 94V-0 rated in Black Color
Contact: Copper Alloy
Plating: See “ORDERING INFORMATION”
Operating Temperature: -20℃ to +85℃
